▌ Product Description

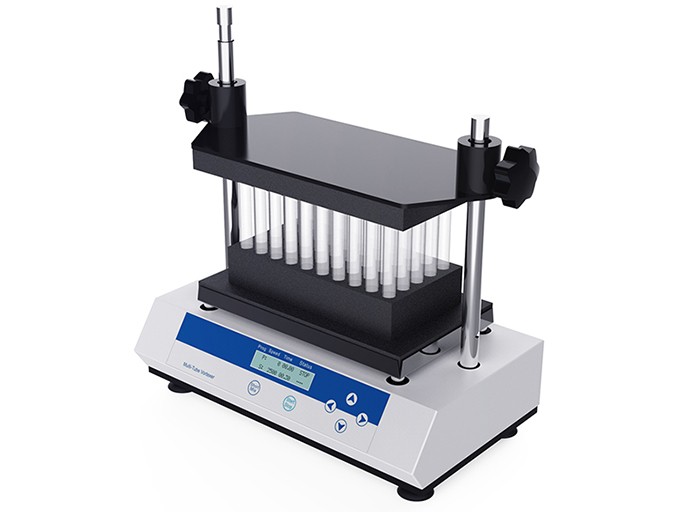

Multi tube vortex mixer
SpecDetails
DMT-2500-proSpeed range: 500-2500rpm, power: 75W, amplitude: 3.6mm, LCD
Top cover size: 310 * 180mm, overall size: 426 × 246 × 474mm, some components imported
DMT-2500Speed range: 500-2500rpm, power: 75W, amplitude: 3.6mm, nixie tube display
Top cover size: 310 * 180mm, overall size: 426 × 246× 474mm, domestic components
S1Number of holes: 50 specification: Φ 10mm foam test tube rack ( Φ 12mm foam test tube rack)
S2Number of holes: 50 specification: Φ 13mm foam test tube rack
S3Number of holes: 50 specification: Φ 16mm foam test tube rack (15ml centrifuge tube)
S4Number of holes: 15 specification: Φ 25mm foam test tube rack
S5Number of holes: 15 specification: Φ 29mm foam test tube rack (50ml centrifuge tube)
S6Replaceable pallet pad (Upper & lower)
Microplate thermostatic oscillator
SpecDetails
MB100-2ASpeed range: 200-1500rpm, power: 150W, amplitude: 2mm, capacity: 2 microporous plates
Temperature control range: RT + 5-80 ℃, temperature uniformity: ± 0.3 ℃, overall dimension: 280 × 276 × 150MM

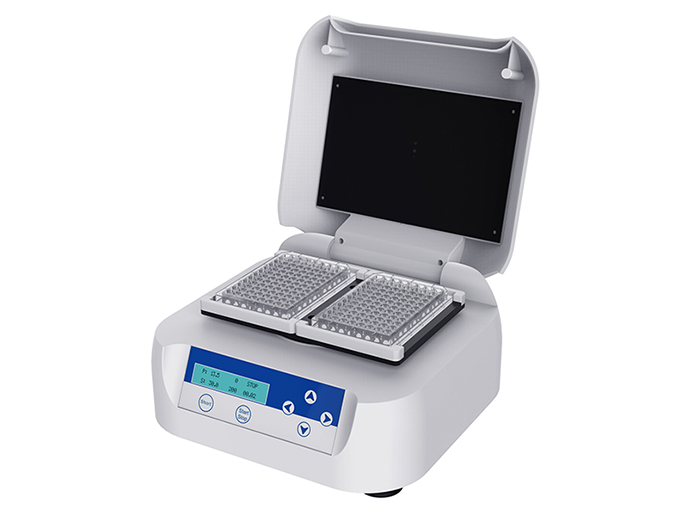

Microplate constant temperature incubator
SpecDetails
MK100-2APower: 150W, capacity: 2 microporous plates
Temperature control range: RT + 5-80 ℃, temperature uniformity: ± 0.3 ℃, overall dimension: 280 × 276 × 150MM

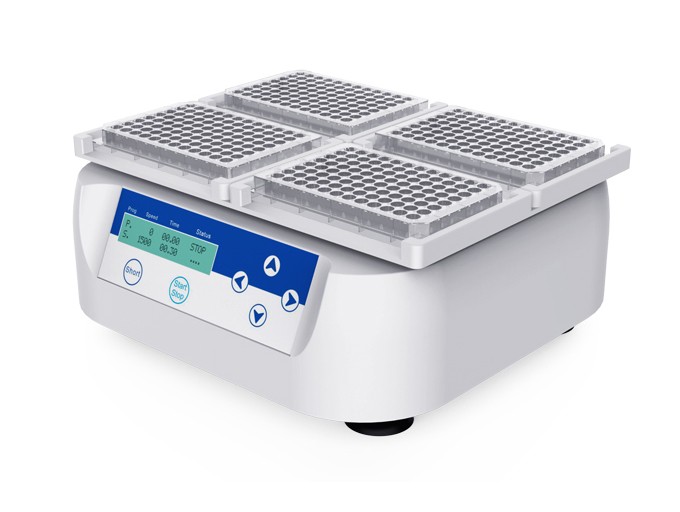

Microplate oscillator
SpecDetails
MX100-4ASpeed range: 300-1500rpm, amplitude: 3mm, capacity: 4 microporous plates
Timing range: 0-99H59min, overall dimension: 280 × 276× 126MM

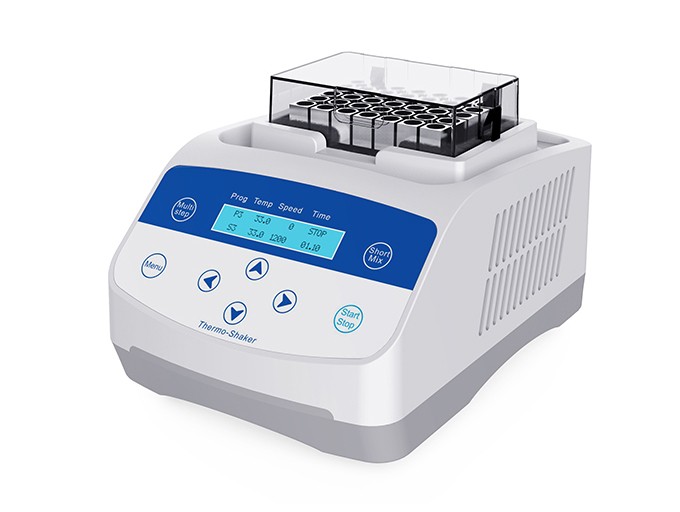

Constant temperature mixer
SpecDetails
MTH-100（hot）Temperature uniformity: RT ± 3 ℃ - 2000rpm
Amplitude: 2mm, heating time: ≤ 15min (25 ℃ to 100 ℃), equipped with a module
MTC-100（cool）Temperature control range: 0-100 ℃, temperature uniformity: ± 0.3 ℃, speed range: 300-1500rpm
Amplitude: 2mm, heating time: ≤ 15min (25 ℃ to 100 ℃)
Refrigeration speed: ≥ 7 ℃ / min (from 100 ℃ to 20 ℃) configure a module
A196 × 0.2ml standard plate, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A254× 0.5ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A335× 1.5ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A435× 2.0ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A520× 0.5ml+15 × 1.5ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A624×φ 12mm test tube, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A732 × 0.2ml+25 × 1.5ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A832× 0.2ml+10 × 0.5ml+15 × 1.5ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A9103× 67× 30 (square slot module), maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A1096× 0.2ml enzyme label plate (flat bottom), maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A1124× 5ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
A1212 × 15ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 700rpm
A136× 50ml centrifugal tube, maximum temperature: 100 ℃, maximum speed: 700rpm
A14Maximum temperature: 100 ℃, maximum speed: 1500 / 2000rpm
HX-A196 × 0.2ml centrifugal pipe support, maximum speed: 1500 / 2000rpm
HX-A224× 0.5ml centrifugal pipe support, maximum speed: 1500 / 2000rpm
HX-A324 × 1.5/2.0ml centrifugal pipe support, maximum speed: 1500 / 2000rpm

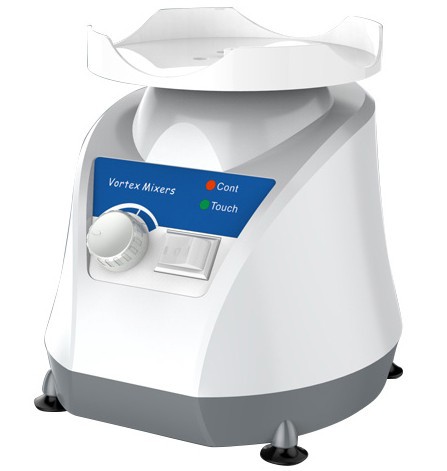

Mini mixer
SpecDetails
MIX-2500Operation display mode: knob + scale, circumferential diameter: 4.5mm, operation mode: continuous operation or inching
Speed range: 0-2800rpm, overall dimension: 134x156x150mm, net weight: 2.4kg, X1 ~ X3 standard, X4 ~ x9 optional
X1Standard head for test tubes and small containers less than 30mm in diameter
X2Standard plastic tray
X3Tray gasket, used in conjunction with standard plastic tray, is used for test tubes or small containers with diameter less than 108mm
X4Foam module, used in conjunction with the standard plastic tray, for placing 0.2ml test tube, aperture Φ 5mm × 89
X5Foam module, used in conjunction with the standard plastic tray, for placing 0.5ml test tube, aperture Φ 6.6mm × 37
X6Foam module, used in conjunction with standard plastic tray, for placing 1.5/2.0ml test tube, aperture Φ 9.8mm × 20
X7Foam module, used in conjunction with the standard plastic tray, for placing 15ml test tubes, aperture Φ 14mm × 8
X8Foam module, used in conjunction with the standard plastic tray, for placing 50ml test tubes, aperture Φ 26.2mm × 4
X9Microplate tray is used to place all kinds of microplates, deep microplates, etc

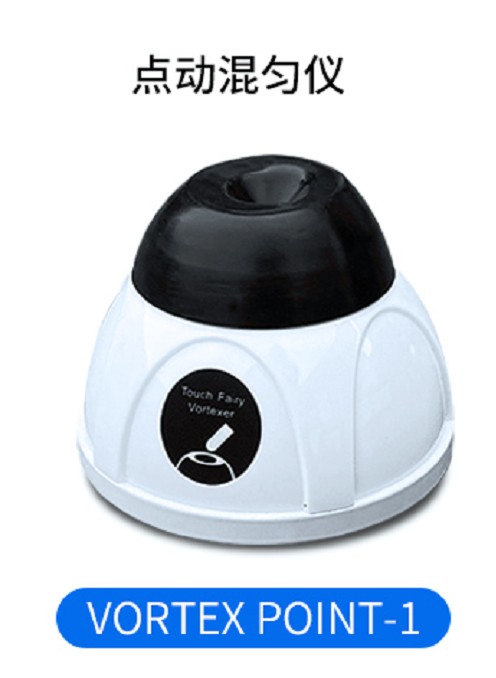

Vortex Point-1 、Vortex Point-2  vortex oscillator
spacer.gifspacer.gif20230505105224872.png@!w400
SpecDetails
Vortex Point-1Operation mode: inching, power: 12W, sample handling capacity ≤ 50ml
Speed range: 0-4000rpm, net weight: 1.1kg, standard configuration: bowl head
Vortex Point-2Operation mode: knob + scale, operation mode: stepless speed regulation or inching, power: 12W, sample processing capacity ≤ 50ml
Speed range: 0-4000rpm, net weight: 1.1kg, standard configuration: bowl head

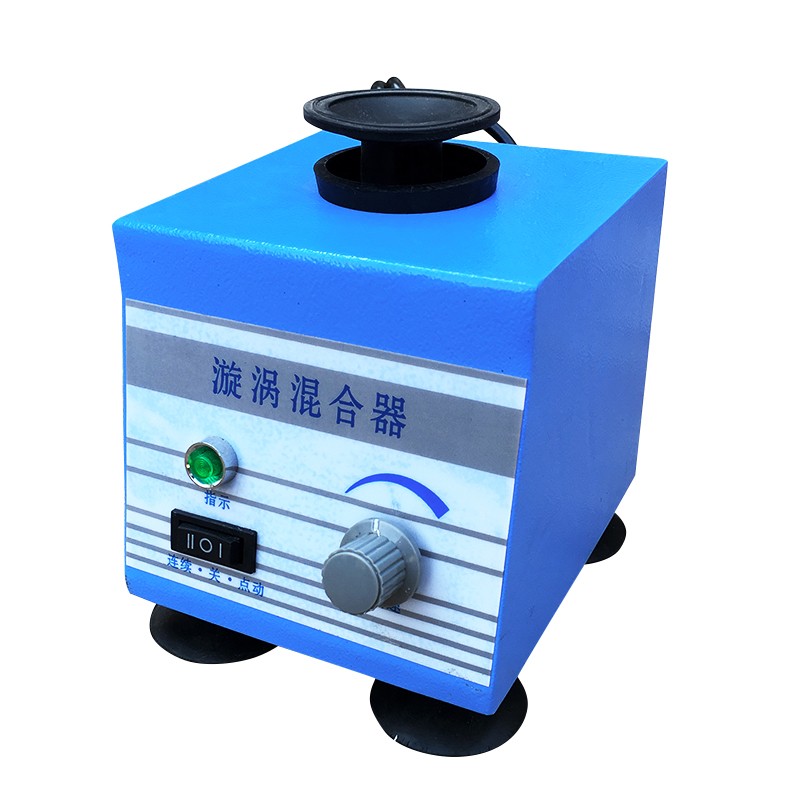

vortex Mixers
SpecDetails
XH-TOperation mode: knob + scale, operation mode: stepless speed regulation or inching, power: 60W
Speed range: 0-2800rpm, net weight: 3kg, standard configuration: bowl head

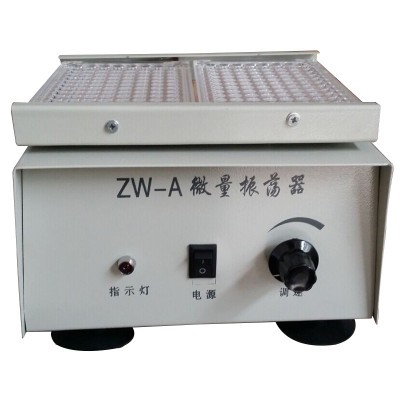

Micro oscillator
SpecDetails
ZW-AOscillation frequency: 0 ~ 3000rpm, amplitude: 6mm, hemagglutination plate: 0.4ml × 96 holes, timing: 0 ~ 120min or normally open
Overall dimension: 220 × one hundred and eighty × 130mm, tray size 180 × 150mm, power: 18W
