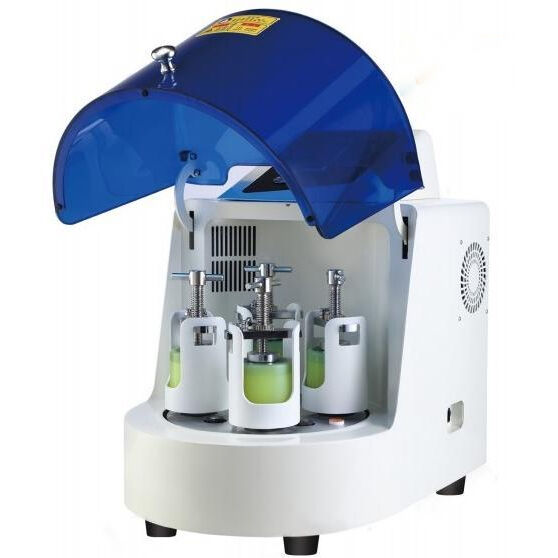

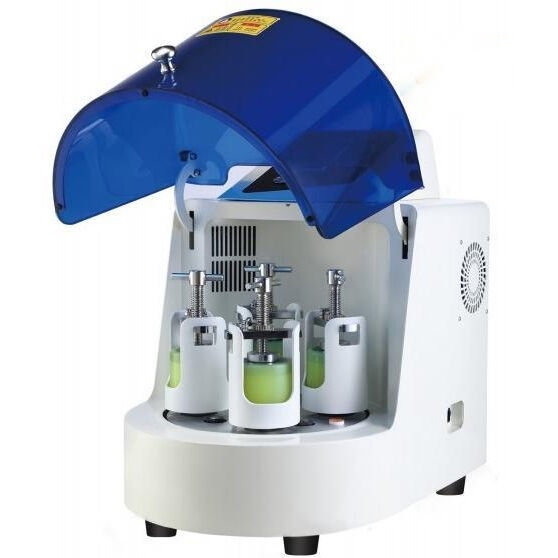

Planetary ball mill

Inquiry Now

▌ Product Description

Introduction to planetary ball mill

Planetary ball mill is mainly a necessary device for mixing, fine grinding, sample preparation, nano material dispersion, new product development and small batch production of high-tech materials. This product is small in size, full in function, high in efficiency and low in noise. It is an ideal equipment for scientific research institutions, colleges and universities, and enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time for each experiment). It is equipped with a vacuum ball milling tank and can grind samples under vacuum. Planetary ball mill is suitable for wet and dry crushing and refining of hard, medium hardness, brittle and fibrous materials, and the sample fineness can be less than 0.1 μ m. It can also be used for grinding of solids in suspension, sample mixing and homogenization, metal alloying, etc., which can achieve perfect and outstanding results. application

It is widely used in scientific research and material production departments such as geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection, macha, etc. Such as pearl, ginseng, Dendrobium candidum, tablets, liquorice, coke, coal, glass, cellulose, paper, chip polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramic, alumina, bone, kaolin, limestone, gypsum, quartz, minerals, minerals, carbonized fiber, graphite, ink, clay minerals, fiber products, sewage sludge, catalyst, chemicals, alloy, soil, Waste samples, wood, plant raw materials, cement slag, concrete, slag, tobacco Fracture

① Pulse. The material as a whole is far away from the revolution center in a group way, and after rotating to a certain angle with the cylinder, it slides in the opposite direction of rotation. The grinding body pushes the powder layer away from the mill and exerts compression, shear and friction on the material.

② Drop. After the material is turned to a certain angle with the grinding cylinder, the pressure on the cylinder wall is equal to zero, and the material is thrown off the cylinder wall, exerting an impact on the material.

Focus on the preparation of new powder materials

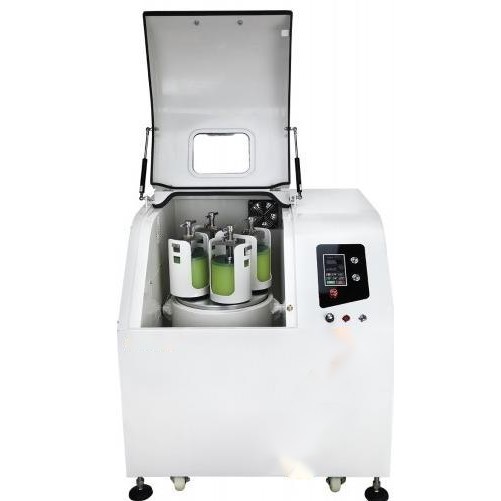

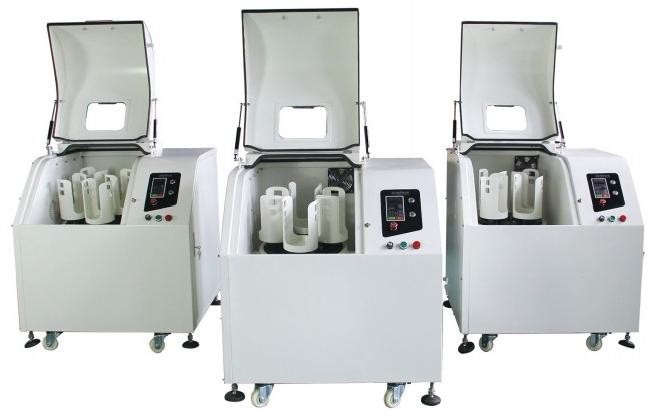

YXQM serials

Nano-scale grinding, discharge up to 0.1 μ m

Product features:

● Oil seal mute invention patent, lower noise by more than 50% than the ordinary planetary mill on the market, 2 times longer Above service life.

● PLC panel, convenient, simple, efficient, can set time, speed, positive and reverse.

● The equipment can be directly moved and positioned by the roller, which is convenient and convenient to carry.

● Intelligent control safety door, which can be opened only when the machine does not move, to prevent the machine from unstopping, opening the door and throwing the can

Take risks. (Control panel is attached)

Product parameters

● Suitable for vertical planetary mill for laboratory or Chinese production

Model	YXQM-0.4L	YXQM-1L	YXQM-2L	YXQM-4L	YXQM-8L	YXQM-12L
Grinding tank volume	50-100(ml)	50-250(ml)	50-500(ml)	50-1000(ml)	500-2000(ml)	1000-3000(ml)
Volume of vacuum tank	50(ml)	50-100(ml)	50-250(ml)	50-500(ml)	500-2000(ml)	1000-3000(ml)
Revolution speed	5-450(r/min)	5-450(r/min)	5-400(r/min)	5-400(r/min)	5-320(r/min)	5-320(r/min)
Autorotation speed	10-900(r/min)	10-900(r/min)	10-800(r/min)	10-800(r/min)	10-640(r/min)	10-640(r/min)
Power kw	0.55(kw)	0.55(kw)	0.75(kw)	0.75(kw)	1.5(kw)	1.5(kw)
Power supply	220/50(v/hz)	220/50(v/hz)	220/50(v/hz)	220/50(v/hz)	220/380/50(v/hz)	380/50(v/hz)
weight	68(kg)	70(kg)	96(kg)	99(kg)	191(kg)	193(kg)

● Suitable for vertical planetary mill for mass production

Model	YXQM-16L	YXQM-2OL	YXQM-4OL	YXQM-60L	YXQM-80L	YXQM-100L
Grinding tank volume	1-4(L)	1-5(L)	5-10(L)	10-15(L)	10-20(L)	10-25(L)
Volume of vacuum tank	1-4(L)	1-5(L)	5-10(L)	10-15(L)	10-20(L)	10-25(L)
Revolution speed	5-230(r/min)	5-230(r/min)	5-220(r/min)	5-180(r/min)	5-180(r/min)	5-180(r/min)
Autorotation speed	10-460(r/min)	10-460(r/min)	10-440(r/min)	10-440(r/min)	10-360(r/min)	10-360(r/min)
Power kw	3(kw)	3(kw)	7.5(kw)	7.5(kw)	15(kw)	15(kw)
Power supply	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)
weight	230(kg)	288(kg)	400(kg)	610(kg)	610(kg)	1059(kg)

Sample processing - crushing/grinding/mixing/screening/tableting/sintering

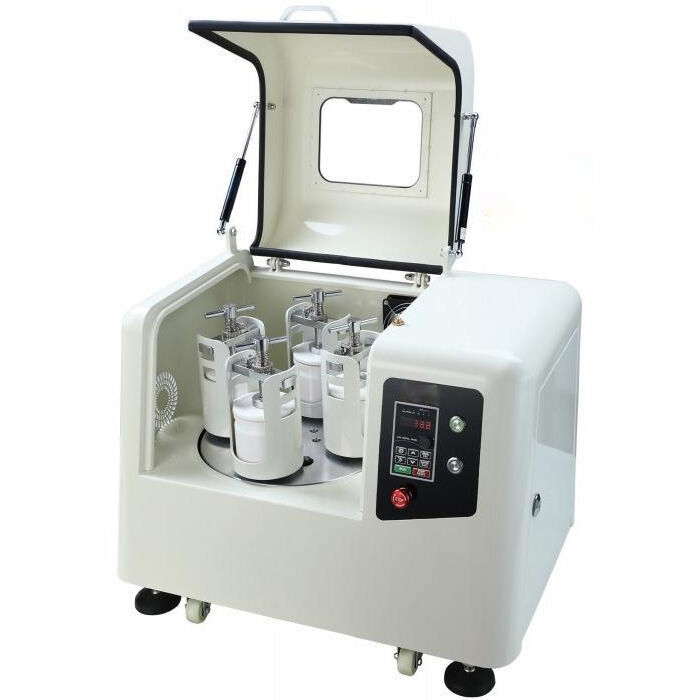

ZQM series

One-click operation with digital screen display, nanometer grinding

Product features:

The oil seal mute invention patent is lower than the ordinary planetary mill in the market by more than 50%, and extends the service life by 2 times.

The equipment can be directly moved and positioned by the roller, which is portable and convenient.

The intelligent control safety door can open the door only when the machine is not moving, to avoid the risk of opening the door and throwing the can out if the machine does not stop stably.

It is produced by a professional design engineer, with a design concept of simplicity, beauty, environmental protection and safety.

Intelligent digital screen display, convenient parameter setting, one-touch operation.

It can store 3 modes and 15 schemes.

Power-off protection memory self-start function.

Dry grinding, can grinding, vacuum grinding, protective atmosphere grinding.

Cover opening safety travel switch, self-locking tank clamp anti-loosening design, safe and stable.

Product parameters

model	Grinding tank volume	Volume of vacuum tank	Revolution speed	Autorotation speed	power	Power Supply	weight
ZQM-2L	50-500(ml)	50-250(ml)	5-400(r/min)	10-800(r/min)	0.75(kw)	220/50(v/hz)	98(kg)
ZQM-4L	50-1000(ml)	50-500(ml)	5-400(r/min)	10-800(r/min)	0.75(kw)	220/50(v/hz)	100(kg)

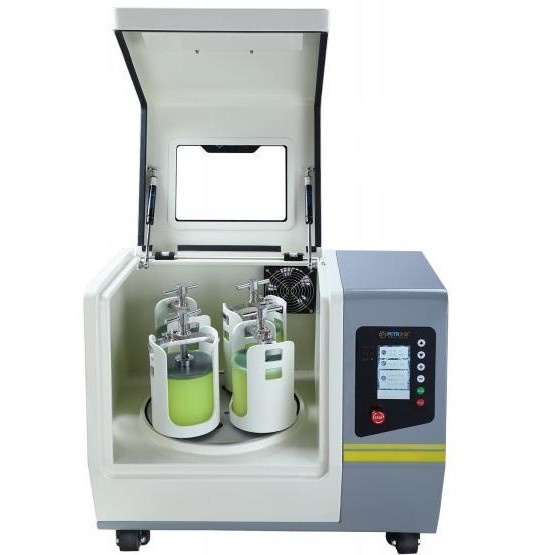

BQM series

Desktop operation, nanometer grinding

Product features

The oil seal mute invention patent is lower than the ordinary planetary mill in the market by more than 50%, and extends the service life by 2 times. Compact shape, saving laboratory space, and can be directly placed on the desktop for work.

Transparent full observation window cover, more beautiful overall molding.

Intelligent digital screen display, convenient parameter setting, one-touch operation.

It can store 3 modes and 15 schemes.

Power-off protection memory self-start function.

Dry grinding, can grinding, vacuum grinding, protective atmosphere grinding.

Engineering grade ultra-thick high-strength plastic cover, safety travel switch


model	Grinding tank volume	Volume of vacuum tank	Revolution speed	Autorotation speed	power	Power Supply	weight
BQM-0.4L	50-100(ml)	50(ml)	5-450(r/min)	10-900(r/min)	0.55(kw)	220/50(v/hz)	55(kg)
BQM-1L	50-250(ml)	50-100(ml)	5-450(r/min)	10-900(r/min)	0.55(kw)	220/50(v/hz)	57(kg)
Focus on the preparation of new powder materials

for opening the cover, self-locking tank clamp anti-loosening design, safe and stable.

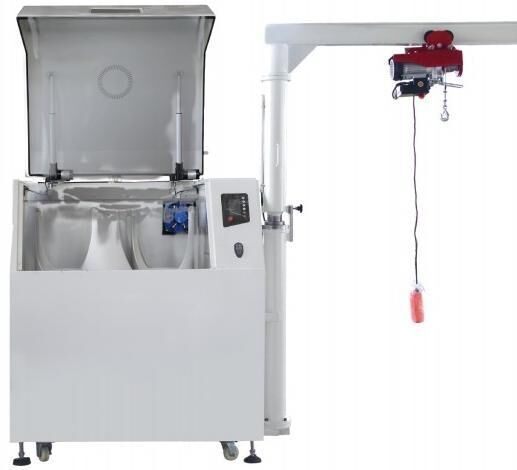

All-round series

360-degree non-dead angle nanoscale grinding

Product introduction

All-round planetary mill is the third generation upgrade product of the planetary mill series. And vertical

The difference of the planetary ball mill is that when the planetary can body is working, the planetary main disc does not stop at the same time

360-degree rotation or working at any angle makes the material fully participate in grinding and mixing, thus reducing

The phenomenon of low material sinking. Therefore, this model is also known as the non-dead angle planetary grinder.

Product features

Patented direct-connected motor, no belt replacement for the equipment, simpler maintenance and equipment

Longer stable life.

The equipment can be directly moved and positioned by the roller, which is portable and convenient.

The travel contact safety door is opened and closed, and the cover is opened and the power is cut off to avoid the risk of the can being thrown out.

The model selection range is wide, economical and affordable, and the maximum size is 100L.

Designed by professional German design engineers, which integrates simplicity, economy, environmental protection and safety

idea.

Product parameters

model	QM-QX0.4L	QM-QX1L	QM-QX2L	QM-QX4L	QM-QX8L	QM-Q × 12L
Grinding tank volume	50-100(ml)	50-250(ml)	50-500(ml)	50-1000(ml)	500-2000(ml)	1000-3000(ml)
Volume of vacuum tank	50(ml)	50-100(ml)	50-250(ml)	50-500(ml)	500-2000(ml)	1000-3000(ml)
Revolution speed	5-450(r/min)	5-450(r/min)	5-400(r/min)	5-400(r/min)	5-320(r/min)	5-320(r/min)
Autorotation speed	10-900(r/min)	10-900(r/min)	10-800(r/min)	10-800(r/min)	10-640(r/min)	10-640(r/min)
power	0.55(kw)	0.55(kw)	0.75(kw)	0.75(kw)	1.5(kw)	1.5(kw)
Power Supply	220/50(v/hz)	220/50(v/hz)	220/50(v/hz)	220/50(v/hz)	380/50(v/hz)	380/50(v/hz)
weight	132(kg)	135(kg)	206(kg)	210(kg)	280(kg)	390(kg)

model	QM-QX16L	QM-QX20L	QM-QX40L	QM-QX60L	QM-QX80L	QM-QX100L
Grinding tank volume	1-4(L)	1-5(L)	5-10(L)	10-15(L)	10-20(L)	10-25(L)
Volume of vacuum tank	1-4(L)	1-5(L)	5-10(L)	10-15(L)	10-20(L)	10-25(L)
Revolution speed	5-230(r/min)	5-230(r/min)	5-220(r/min)	5-220(r/min)	5-180(r/min)	5-180(r/min)
Autorotation speed	10-460(r/min)	10-460(r/min)	10-440(r/min)	10-440(r/min)	10-360(r/min)	10-360(r/min)
power	3.7(kw)	3.7(kw)	7.5(kw)	7.5(kw)	15(kw)	15(kw)
Power Supply	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)
weight	500(kg)	614(kg)	920(kg)	1100(kg)	1400(kg)	1600(kg)

High throughput series

Multi-channel ultra-large sample throughput grinding

Product features

Patented direct-connected motor, no belt replacement for the equipment, simpler maintenance and equipment

Plus, the stability life is longer.

The equipment can be directly moved and positioned by the roller, which is portable and convenient.

The intelligent control safety door can open the door only when the machine is not moving, to avoid the risk of opening the door and throwing the can out if the machine does not stop stably.

It is produced by a professional design engineer, with a design concept of simplicity, beauty, environmental protection and safety.

High-throughput multi-channel can achieve at most 112 samples simultaneously at a time to ensure sample consistency.

model	Station	Single station tank rack layer	Single-layer channel	Total channel	Single channel volume	Power Supply	power
GT2-16	4 stations	1 layer	4	16 channels	15ml	220/50(v/hz)	0.75(kw)
GT4-24	4 stations	1 layer	6	24 channels	15ml	220/50(v/hz)	0.75(kw)
GT8-56	4 stations	2 floors	7	56 channels	30ml	220/50(v/hz)	1.5(kw)
GT12-72	4 stations	2 floors	9	72 channels	30ml	380/50(v/hz)	1.5(kw)
GT20-112	4 stations	2 floors	14	112 channels	30ml	380/50(v/hz)	3.7(kw)

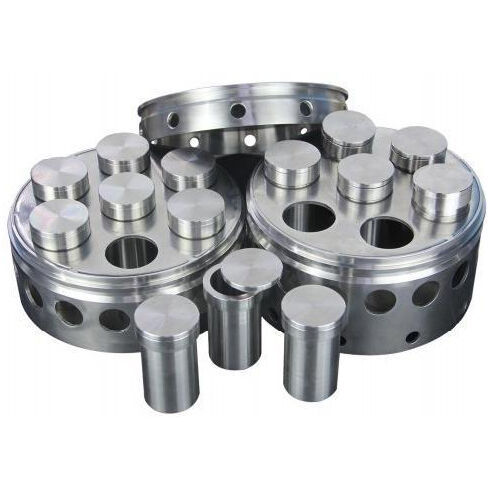

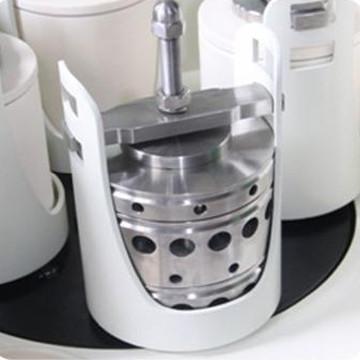

High throughput ball milling tank

GT series is a high-throughput planetary mill, which can be used to achieve efficient ball milling and mixing. Four stainless steel grinding tank carriers can be placed in each of the four grinding stations. Customers can grind 16-112 different material samples at one time. Applications include alloys, ceramics, chemical products, polymer composites, metal oxides, minerals and other fields, and shorten the test time. For high-throughput material grinding and mixing, this is an ideal, efficient experiment, Chinese equipment. At present, this product is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine and environmental protection.

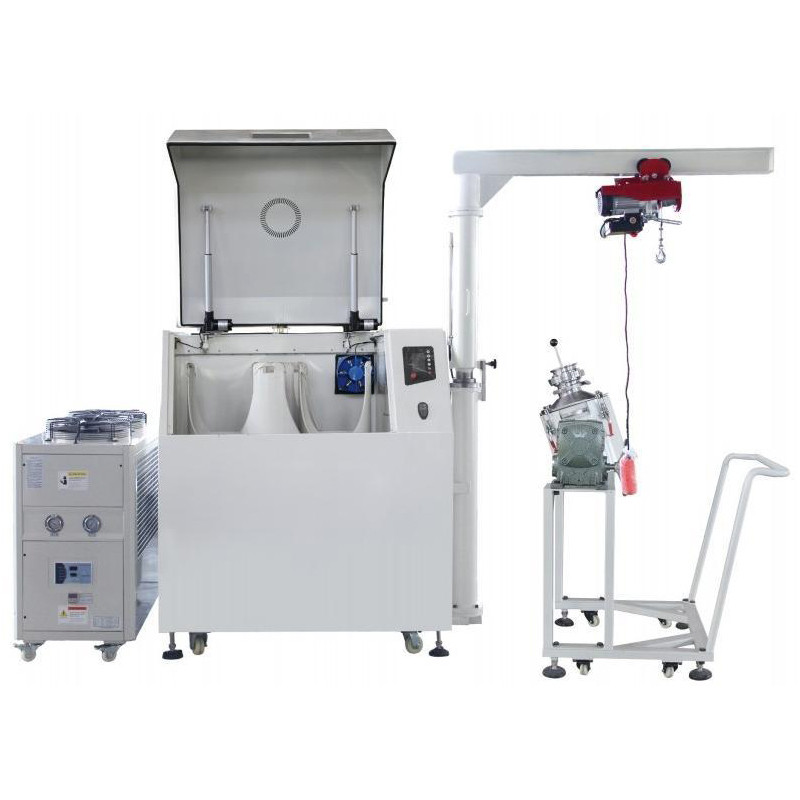

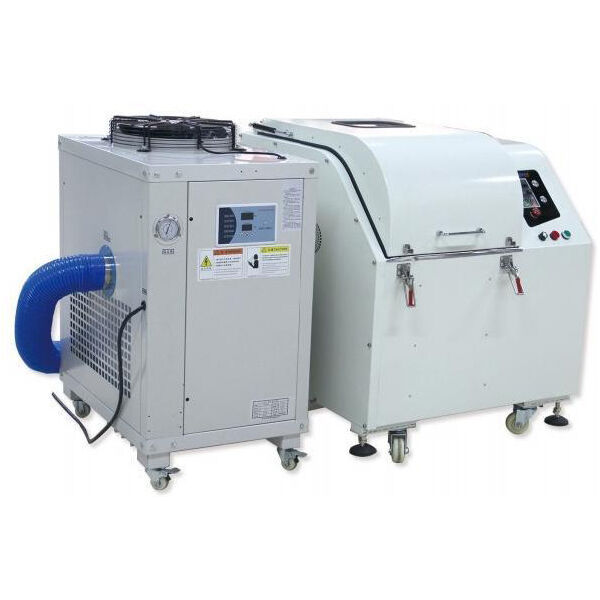

Cold air series

Low temperature nanoscale grinding

Product features

2.0 The sheet metal shell is sprayed with plastic for environmental protection, and the cavity is made of thermal insulation materials to ensure the continuous low temperature environment in the cavity.

Panasonic compressor configuration, stable quality, fast cooling, the lowest temperature inside the cavity can be reduced to 1 ℃. Temperature PLC programming control, automatic frequency conversion setting 1-30 ℃, reduce equipment energy consumption.

Designed by German engineers for professional energy saving, the cavity is automatically recycled by cold air circulation, which greatly reduces the use cost.

The oil seal mute invention patent is lower than the ordinary planetary mill in the market by more than 50%, and extends the service life by 2 times.

The equipment can be directly moved and positioned by the roller, which is portable and convenient.

The travel contact safety door is opened and closed, and the cover is opened and the power is cut off to avoid the risk of the can being thrown out.

Product application

● It is necessary to conduct ultra-fine grinding or mixing experiments on the powder.

● It is sensitive to temperature and needs to be grinded within 1-30 ℃ at normal temperature.

● The sample is easy to be stuck and agglomerated by false welding.

Product parameters

model	XH-XQM1L	XH-XQM2L	XH-XQM4L	XH-XQM8L	XH-XQM12L
Grinding tank volume	50-250(ml)	50-500(ml)	50-1000(ml)	500-2000(ml)	1000-3000(ml)
Volume of vacuum tank	50-100(ml)	50-250(ml)	50-500(ml)	500-2000(ml)	1000-3000(ml)
Revolution speed	5-450(r/min)	5-400(r/min)	5-400(r/min)	5-320(r/min)	5-320(r/min)
Autorotation speed	10-900(r/min)	10-800(r/min)	10-800(r/min)	10-640(r/min)	10-640(r/min)
power	0.55(kw)	0.75(kw)	0.75(kw)	1.5(kw)	1.5(kw)
Power Supply	220/50(v/hz)	220/50(v/hz)	220/50(v/hz)	220/380/50(v/hz)	380/50(v/hz)
Control temperature	1-15℃	1-15℃	1-15℃	3-15℃	3-15℃
Air cooler	2P	2P	2P	2P-3P	2P-3P

model	XH-XQM2OL	XH-XQM4OL	XH-XQM60L	XH-XQM80L	XH-XQM100L
Grinding tank volume	1-5(L)	5-10(L)	10-15(L)	10-20(L)	10-25(L)
Volume of vacuum tank	1-5(L)	5-10(L)	10-15(L)	10-20(L)	10-25(L)
Revolution speed	5-230(r/min)	5-220(r/min)	5-220(r/min)	5-180(r/min)	5-180(r/min)
Autorotation speed	10-460(r/min)	10-440(r/min)	10-440(r/min)	10-360(r/min)	10-360(r/min)
power	3(kw)	7.5(kw)	7.5 (kw)	15(kw)	15(kw)
Power Supply	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)	380/50(v/hz)
Control temperature	5-20℃	5-20℃	5-20℃	5-20℃	5-20℃
Air cooler	3P	3P	2P-3P	3P-5P	5P

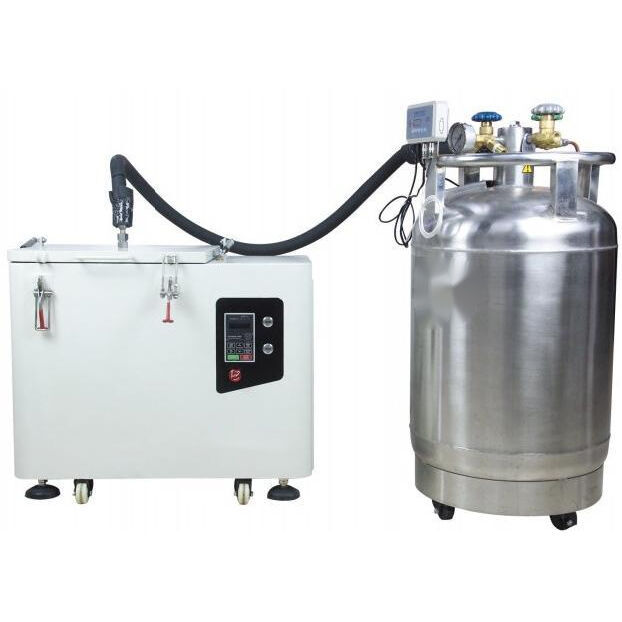

Liquid nitrogen series

Ultra-low temperature ultra-fine grinding

Product features

Liquid nitrogen tank adopts liquid level temperature controller to automatically control temperature and save energy consumption of liquid nitrogen.

The set temperature range in the chamber is - 60 ℃ to - 1 ℃, and the ultra-low temperature environment is used for ultra-fine grinding.

2.0 The sheet metal shell is sprayed with plastic and environmental protection technology, and the cavity is made of thermal insulation materials to ensure the continuity of the cavity

Low temperature environment.

Designed by German engineers for professional energy conservation, the chamber is made of ultra-low temperature insulation materials to avoid liquid nitrogen waste.

The oil seal mute invention patent is lower than the ordinary planetary mill in the market by more than 50%, and extends the service life by 2 times.

The equipment can be directly moved and positioned by the roller, which is portable and convenient.

The travel contact safety door is opened and closed, and the cover is opened and the power is cut off to avoid the risk of the can being thrown out.

Product application

It is necessary to conduct ultra-fine grinding or mixing experiments on the powder

It is sensitive to temperature and needs to be grinded at ultra-low temperature of - 60 ℃ to - 1 ℃

Ultra-low temperature development experiment of materials in medicine, biology, aviation and other fields

Product parameters

model	YD-XQM1L	YD-XQM2L	YD-XQM4L	YD-XQM8L	YD-XQM12L	YD-XQM2OL
Grinding tank volume	50-250(ml)	50-500(ml)	50-1000(ml)	500-2000(ml)	1000-3000(ml)	1000-5000(ml)
Volume of vacuum tank	50-100(ml)	50-250(ml)	50-500(ml)	500-2000(ml)	1000-3000(ml)	1000-5000(ml)
Revolution speed	5-450(r/min)	5-400(r/min)	5-400(r/min)	5-320(r/min)	5-320(r/min)	5-230(r/min)
Autorotation speed	10-900(r/min)	10-800(r/min)	10-800(r/min)	10-640(r/min)	10-640(r/min)	10-460(r/min)
power	0.55(kw)	0.75(kw)	0.75(kw)	1.5(kw)	1.5(kw)	3(kw)
Power Supply	220/50(v/hz)	220/50(v/hz)	220/50(v/hz)	220/380/50(v/hz)	380/50(v/hz)	380/50(v/hz)
Control temperature	-60 ℃ to - 1 ℃	-60 ℃ to - 1 ℃	-60 ℃ to - 1 ℃	-60 ℃ to - 1 ℃	-60 ℃ to - 1 ℃	-60 ℃ to - 1 ℃
liquid nitrogen tank	Automatic supercharging 30L	Automatic supercharging 30L	Automatic supercharging 30L	Automatic supercharging 50L	Automatic supercharging 50L	Automatic supercharging 50L

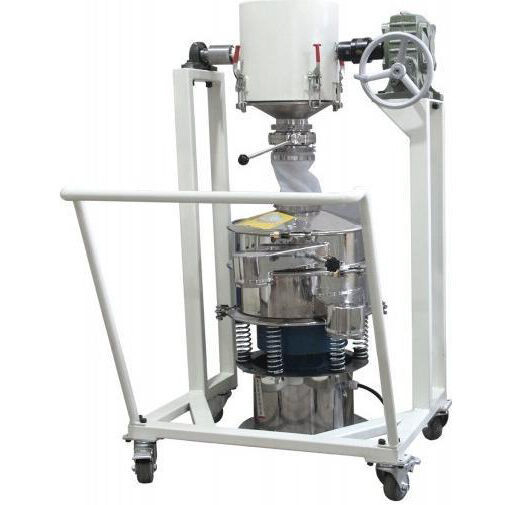

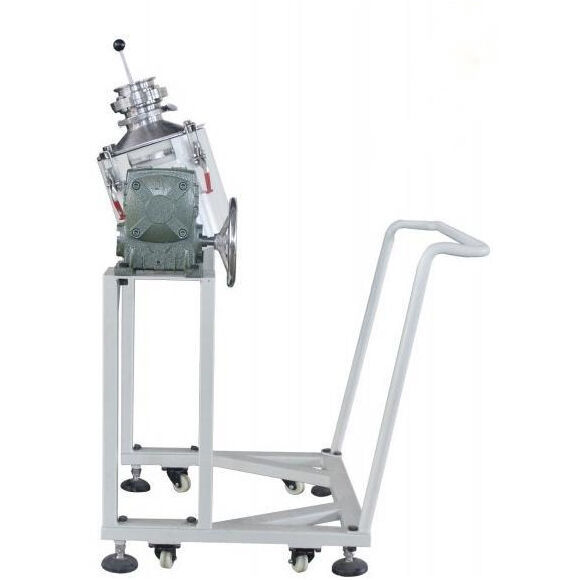

Unloader

Product features

● Solve the problem of portable material discharge of planetary mill.

● Automatic ball material and powder particle size separation by matching screening machine.

● Transportable materials to solve the tedious labor workload.

● It is equipped with a vibrating pump to assist in unloading.

Product parameters

model	XL-40	XL-60	XL-80	XL-100
Discharge tank	10L	15L	20L	25L
Discharge flange port	100mm	100mm	100mm	100mm

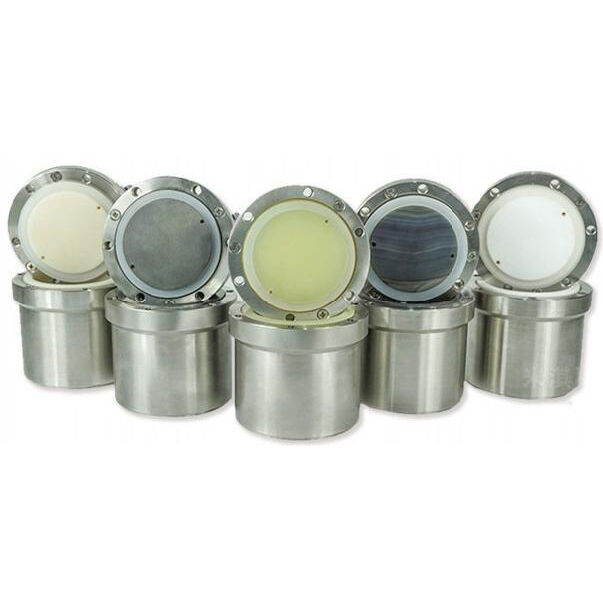

Vertical ball milling tank

Product features

● It is made of mold, with extremely high smoothness of the inner and outer walls, to avoid the problem of wall sticking during material grinding.

● Made of new imported raw materials, with strong oxidation resistance.

● The bottom is made of large R angle to reduce the sinking of materials during grinding.

● High grinding efficiency and long service life.

● It is manufactured according to the market demand and meets the requirements of supporting planetary ball mills of other domestic manufacturers.

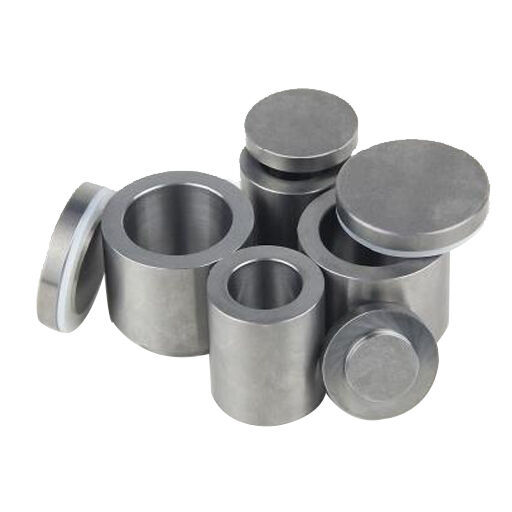

Stainless steel ball grinding tank is wear-resistant, corrosion-resistant, high-temperature resistant, and has a bad service environment.

Hard alloy ball milling tank is wear-resistant, corrosion resistant, twist resistant, high temperature resistant, and has a bad service environment

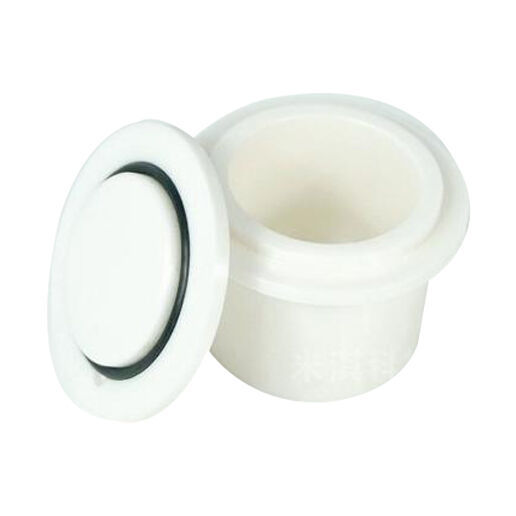

Alumina ball milling tank is resistant to various solvents, strong acids, strong alkalis and impact

Zirconia ball grinding tank is wear-resistant, chemical corrosion resistant, high temperature resistant, inorganic acid resistant, non-toxic and tasteless.

Silicon carbide ball grinding tank is wear-resistant, corrosion resistant, twist resistant, high temperature resistant, strong acid and alkali resistant, and impact resistant.

Silicon nitride ball grinding tank is resistant to wear, chemical inertia and thermal shock, various solvents, strong acids and alkalis, and impact.

Polyurethane ball milling tank has high mechanical strength and oxidation stability, high flexibility and resilience, and high smoothness)

Nylon ball grinding tank has good comprehensive performance, light weight, high strength, creep resistance, wear resistance and heat aging resistance.

The PTFE ball grinding tank is wear-resistant, corrosion-resistant, high-temperature resistant and has a bad service environment.

The agate ball grinding tank is high purity, pollution-free, and has no thermal effect, which can alleviate sample hardening, and is resistant to friction and extrusion.

Specifications	50ml	100ml	250ml	500ml	1L	2L	3L	5L	10L	15L	25L
Stainless steel ball milling tank	*	*	*	*	*	*	*	*	*	*	*
PTFE ball milling tank	*	*	*	*	*	*	*	*		*
agate jar	*	*	*	*	*	*	*
Zirconia ball milling tank	*	*	*	*	*	*	*	*
Carbide ball milling tank	*	*	*	*	*
Polyurethane ball milling tank	*	*	*	*	*	*	*	*	*
Silicon nitride ball milling tank	*	*	*	*	*
Nylon ball milling tank	*	*	*	*	*	*	*	*	*	*	*
Alumina ball milling tank	*	*	*	*	*	*	*	*	*

Vacuum ball milling tank

Product introduction

Vacuum ball grinding tank is usually used when air grinding is required to be isolated, which can effectively eliminate objects

Hazardous situations such as oxidation caused by contact of materials with oxygen or explosion caused by contact with air, and

It can effectively control the drying of materials and improve the grinding fineness of materials,

Convenient operation and strong sealing; Stainless steel material, also can be lined with nylon, polyurethane, corundum

And other materials.

Product features

Made by mold, the inner and outer walls are extremely smooth to avoid the problem of wall sticking during material grinding.

It is made of new imported raw materials with strong oxidation resistance.

The bottom is made of large R angle to reduce the sinking of materials during grinding.

High grinding efficiency and long service life.

It is manufactured according to the market demand and meets the requirements of supporting planetary ball mills of other domestic manufacturers.

High sealing process, atmosphere protection grinding/mixing.

Product parameters

Specifications	50ml	100ml	250ml	500ml	1000ml	2000ml	3000ml	5L	25L
Stainless steel lining	*	*	*	*	*	*	*	*	*
Lined with PTFE	*	*	*	*	*	*	*	*
Lining agate	*	*	*	*	*
Zirconia lining	*	*	*	*	*	*	*	*
Cemented carbide lining	*	*	*	*	*
Nylon lining	*	*	*	*	*
Polyurethane lining	*	*	*	*	*	*	*	*	*

Customization of ball milling tank

● Customized cemented carbide ball milling tank

● Customized zirconia ball milling tank

We can carry out special ceramic ball milling tank according to the ball mill brand used by customers

Grinding ball/medium

Product introduction

The grinding medium is a ball or cylindrical object rolling in the ball mill. MITR Miqi grinding ball is

It refers to the grinding ball used in the laboratory ball mill instrument and installed in the ball mill tank,

It is made of stainless steel, agate ball, zirconia ball, nylon ball and PTFE ball

Spheres of different materials and sizes are provided according to the characteristics of the material object to be ground

Grinding ball solution.

Specifications	Stainless steel ball	Alumina ball	Agate ball	Zirconia ball	Carbide ball	Polyurethane ball
Stainless steel ball milling tank	*
Alumina ball milling tank		△		*
agate jar			*
Zirconia ball milling tank				*
Carbide ball milling tank					*
Polyurethane ball milling tank			*	*		*
Nylon ball milling tank		△	△	*
PTFE ball milling tank		△	△	*
Silicon carbide ball grinding tank						*
Silicon nitride ball milling tank						*

Shared nylon sleeve

It adopts high-quality nylon integral tank sleeve and is equipped with metal tank clamp, which can fix the vertical planetary ball mill tank

Set it. The nylon sleeve can be used in a wide range, and can be matched with 250ml, 500ml and 1L of our company

Vertical ball milling tank is used. Different material specifications can be matched at will. It can also be used together

On the drum can mill.

▌ Online consultation
